Pickup Switching Positions
With Volume Pot In:
Position One: Bridge humbucker
Position Two: Bridge & Neck Pickup with Inner Coils on only, in parallel
Position Three: Neck humbuckers
With Volume Pot Out:
Position One: Bridge Outer Coil On Only
Position Two: Bridge & Neck Pickup with outer coils on only, in parallel
Position Three: Neck Outer Coil On Only

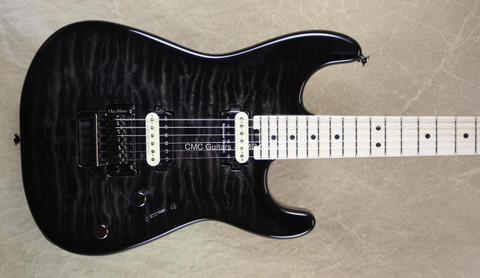

Charvel Pro Mod San Dimas Style 1 2H Black Burst Guitar with FU Tone Big Brass Block Specs:
GENERAL
Model Name: San Dimas Style 1 HH
Series: Pro-Mod
Body: Aldel
Top: Quilted Maple
NECK
Number of Frets: 22
Fret Size: Jumbo
Fretboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Neck Material: 2-Piece Flatsawn Maple
Neck Finish: Hand Rubbed Urethane
Nut Width: 1.6875" (42.8 mm)
Scale Length: 25.5" (648 mm)
Fretboard: Maple
Truss Rod: Wheel Heel Adjustment, Dual Graphite Reinforced Truss Rods
ELECTRONICS
Bridge Pickup: Seymour Duncan® JB
Neck Pickup: Seymour Duncan® '59
Pickup Switching Positions
With Volume Pot In:
Position One: Bridge humbucker
Position Two: Bridge & Neck Pickup with Inner Coils on only, in parallel
Position Three: Neck humbuckers
With Volume Pot Out:
Position One: Bridge Outer Coil On Only
Position Two: Bridge & Neck Pickup with outer coils on only, in parallel
Position Three: Neck Outer Coil On Only
Controls: Master Volume Push/Pull Coil Tapping, Master No-load Tone Control
HARDWARE
Hardware: Black Nickel
Bridge: Floyd Rose® Original Double Locking 2-Point Tremolo with FU Tone Big Brass Block
MISCELLANEOUS
Unique Features: Classic San Dimas® Neck Backshape, Direct Mount Pickups, Top-Mounted Output Jack Cup
