The Dinky body is paired with a sturdy graphite-reinforced bolt-on three-piece maple/wenge/maple neck, featuring a satin finish on the back for greater playing comfort and a heel-mount truss rod adjustment wheel for painless neck relief tweaks. Designed for fast and intricate playing, the 12"-16" compound radius bound ebony fingerboard hosts 24 jumbo frets and offset pearloid dot inlays. Luminlay® side dots will guide your way along the fretboard even on the darkest of stages. Active multi-voiced Fishman® Fluence® Open Core PRF-CO7 bridge and neck humbucking pickups give this powerful instrument its dynamic tone — capable of over-wound hot-rodded crunch or vintage snap. With the five-way blade in pickup positions one (full bridge) or five (full neck), you can leverage the tone control with push/pull activation to switch from voice one to voice two. Pickups positions two, three and four all feature voice 3’s single-coil tone. This versatile model also features a single volume control and a Floyd Rose® 1000 Series 7-string double-locking bridge system for superior tuning stability and dynamic tremolo action. Take your playing to the next level with the all-new Jackson Pro Series Dinky™ DK Modern Ash FR7.
FU TONE TITANIUM UPGRADES:
This guitar is extra special because it has been upgraded with Green Titanium FU Tone Floyd Rose Upgrades. Floyd Rose Tremolo's come stock with light and wimpy trem blocks. In addition many of the key components that players use the most on a Floyd Rose are constructed out of weak and flimsy metal. FU Tone changes all of that. The FU Tone Big Blocks provide more mass which equals more resonance and tone transfer. The trem claw and screws have been upgraded to brass too. In short, with these upgrades your guitar will sound like it just took a big dose of steroids. Fatter Tone and Sustain for days is the result. And it looks a lot cooler with the green parts. Anyone that has played Floyd Rose Trems probably has had broken String Blocks. They are made out of cheap metal. The String Blocks is where your string locks into the bridge. That should be made out of the best metal. Well FU Tone fixes that with Titanium String Blocks. Titanium is the strongest metal that could be used and provides maximum tone transfer. Similarly Floyd Players know how weak all the screws are on the stock Floyd Rose Bridges. These FU Tone Red Titanium Screws fix that. Never worry about stripping them again. Also, the flimsy Floyd Rose Trem Posts have also been upgraded to Green Titanium. So it looks great, is indestructible, and provides maximum tone transfer. To top it off this guitar has been upgraded with Heavy Duty Green Noiseless Springs. No rattling, no noise, no weird overtones or resonance coming from your trem cavity ever again. So this guitar has been given "The Works" Package. Use what Eddie uses in his guitar and buy it today. Installation on this package is free. Grab this guitar while you can.
FU Tone Upgrades "The Works" Package on this guitar:
Big Brass 32mm Block - $34.95
Brass Trem Claw and Screws - $29.90
Floyd Rose Green Titanium String Blocks - $49.95
Floyd Rose Green Titanium String Lock Screws - $49.95
Floyd Rose Green Titanium Saddle Mounting Screws - $39.95
Floyd Rose Green Titanium Nut Clamping Screws - $29.95
Green Titanium Bridge Posts - $49.95
Green Heavy Duty Noiseless Springs - $14.95
Total Cost of Upgrades: $300.00 Included in Price. Fully Set Up and Ready to Play!!!

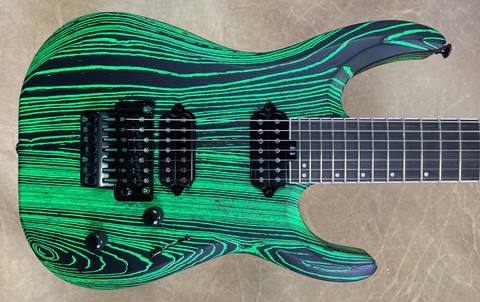

Jackson Pro Series Dinky DK Modern Ash FR7 Baked Green w/FU Tone Green Titanium Upgrades Specs:
GENERAL
MODEL NUMBER 2910001518
SERIES Pro
COLOR Baked Green
NUMBER OF STRINGS 7
ORIENTATION Right-Hand
BODY
BODY FINISH Satin
BODY SHAPE Dinky™
BODY MATERIAL Ash
MISCELLANEOUS
STRINGS Nickel Plated Steel (.009-.056 Gauges)
STRAP BUTTONS Dunlop® Dual-Locking
NECK
NECK MATERIAL 3-Piece Maple/Wenge/Maple
NECK CONSTRUCTION Bolt-On with Graphite Reinforcement
NECK FINISH Satin
NECK BINDING White
SCALE LENGTH 26.5" (673 mm)
FINGERBOARD RADIUS 12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIAL Ebony
NUMBER OF FRETS 24
FRET SIZE Jumbo
NUT MATERIAL Floyd Rose® 1000 Series Locking
NUT WIDTH 1.75" (44.45 mm)
POSITION INLAYS Offset Pearloid Dot
TRUSS ROD NUT Heel-Mount Truss Rod Adjustment Wheel
HEADSTOCK Reverse Jackson® AT-1 3x4 (3 Over/4 Under)
NECK PLATE None
HARDWARE
BRIDGE Floyd Rose® 1000 Series 7-String Double-Locking Tremolo (Recessed)
HARDWARE FINISH Black
TUNING MACHINES Gotoh®
PICKGUARD None
CONTROL KNOBS Dome-Style
SWITCH TIP Black
SADDLE HEIGHT WRENCH Yes
ELECTRONICS
BRIDGE PICKUP Fishman® Fluence® Open Core PRF-CO7
NECK PICKUP Fishman® Fluence® Open Core PRF-CO7
PICKUP COLOR Black
CONTROLS Volume, Tone (with Push/Pull Activation to Switch Between Voice 1 and 2 in Pos 1 and 5)
PICKUP SWITCHING 5-Position Blade: Pos 1. Bridge Full Humbucker, Pos 2. Bridge Inner Coil, Pos 3. Both Inner Coils, Pos 4. Neck Inner Coil Pos 5. Neck Full Humbucker (Voice 3 Single-Coil Tone in Pos 2, 3 and 4)
SPECIAL ELECTRONICS Active Electronics
CONFIGURATION HH
FU Tone Upgrades "The Works" Package on this guitar:
Big Brass 32mm Block - $34.95
Brass Trem Claw and Screws - $29.90
Floyd Rose Red Titanium String Blocks - $49.95
Floyd Rose Red Titanium String Lock Screws - $49.95
Floyd Rose Red Titanium Saddle Mounting Screws - $39.95
Floyd Rose Titanium Nut Clamping Screws - $29.95
Red Titanium Bridge Posts - $49.95
Heavy Duty Noiseless Springs - $14.95
Total Cost of Upgrades plus Installation: $300 Included in Price.
