T-Rex Viper Vibe Guitar Effects Pedal

Features:

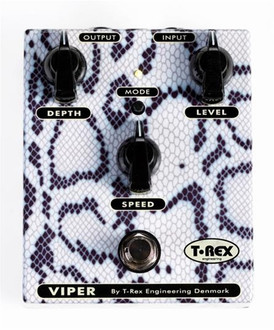

The T-Rex Viper Vibe Guitar Effects Pedal

The T-Rex Viper Vibe Guitar Effects Pedal is a great-looking, phenomenal-sounding pedal takes the original swirling vibe sound and gives it an extra bite €“ with more voltage hurling your sound around the room. Spinning, whirling, shimmering and pulsating, this box is destined to join our other award-winning pedals as a modern classic €“ delivering sounds from the golden age of rock & roll to the twenty-first century.  Viper gives you a range of cool, modulated 70s sounds €“ all enhanced with a T-Rex bite. Youll recognize the vibe effect at once, and its easy to dial in everything from €œLittle Wing to €œBridge of Sighs.

Unlike the seventies-sounding phase shifter or the chorus effect of the eighties, the sound of a vibe never goes out of style. It moves in a subtler way €“ as classic tracks from Hendrix and generations of his musical descendents bear witness. Use Viper to make your guitar stand out with a dynamic, vivid sound that will leave audiences calling for more.  The T-Rex Viper gives you just the control you need for the perfect sound on every tune while keeping it simple. The main controls are Depth, Speed and overall Level, while a Mode button takes you from the rotating speaker to a vibrato effect. A trimmer control on the underside of the pedal lets you tune the phase and intensity of your vibe.


Depth  - This controls the overall strength of the vibe effect. Start with a lower setting for a nice, subtle effect, and turn it up to send your sound whirling around the room.

Speed -  This control lets you adjust how fast or slow your sound modulates €“ no matter what the depth, or what mode youre in.

Level  - This controls overall output of the pedal.

Mode Button - This button allows you to switch between the two classic vibe modes €“ a rotating speaker effect and a subtler vibrato sound.

Trim Dial - this dial is on the back of the unit (accessible using a flat-head screwdriver) lets you shape the intensity and character of your vibe sound. Experiment to get just the vibe youre looking for.


Power:  100 or 115 or 230 VAC 50-60Hz
Power consumption: 2.3 Watts
S/N ratio: 56 dB
Input impedance: 1M Ohm
Output impedance: 200 Ohm
Gain max: +92dB
Boost max: +20dB
Dimension: 186(D) 120(W) 55(H)
Weight:  .820Kg

Input Impedance @ 1KHz: 880KOhm
Output Impedance@1KHz: 24K Ohm
Power supply: 12V DC
Minimum Power supply Voltage: 10.8V DC
Maximum Power supply Voltage: 12.5V DC
Current Draw @ 12V DC: 162mA
Maximum input signal Vp/p: 1.5Vp/p
External connectors: Input Jack. Output Jack, 12V DC Jack
Controls: On/Off, Level, Depth, Speed, Mode
Dimensions: 120mm Depth,  100mm Width, 55mm Height
Weight:  0.594 kg without battery
